產品簡介
技術領域：本技術涉及一種能使吊燈具有旋轉升降功能的旋轉升降式吊燈器。
背景技術：傳統的吊燈一般固定懸掛于空間較高廳堂的頂棚，呈靜態設置，比較呆板，由于高空懸掛，維護清洗或者更換燈泡更為困難。
發明內容：本技術的目的是為了解決上述背景技術存在的不足，提供一種使吊燈具有旋轉和升降式吊燈器，使其配套的吊燈具有動態效果，又便于維護或更換燈泡。
本產品新型實用，結構簡單，使用方便，吊燈工作時，能夠旋轉，使配套的燈飾具有動感效果，需要維修時，能夠升降，便于維護清洗和更換燈泡，由遙控操作完成，特別適用于大型室內空間使用。
Overview
Technology areas: the utility model patents related to a chandelier with rotating movements canfunction in rotation with chandelier–style movements.
Technical background: the traditional chandelier in the general fixed hoisted high Hall of theroof space, a static setting, relatively inflexible, because high–altitudehoisted, the maintenance of cleaning or replacement of the lamp moredifficult.
Invention: the utility model patents are intended to address the above background of the lackof technology and provide a rotation with the chandelier-style chandeliers andmovements, to support the dynamic effects of the chandeliers, easy to maintain orreplace bulbs.
This new product practical, simple, easy to use, chandeliers work, we can rotate so thatthe matching of dynamic lighting effects, in need of repair, we can take–off and landing, easyto maintain cleaning and replacement of light bulbs, especially for large indoor space.

安裝說明：

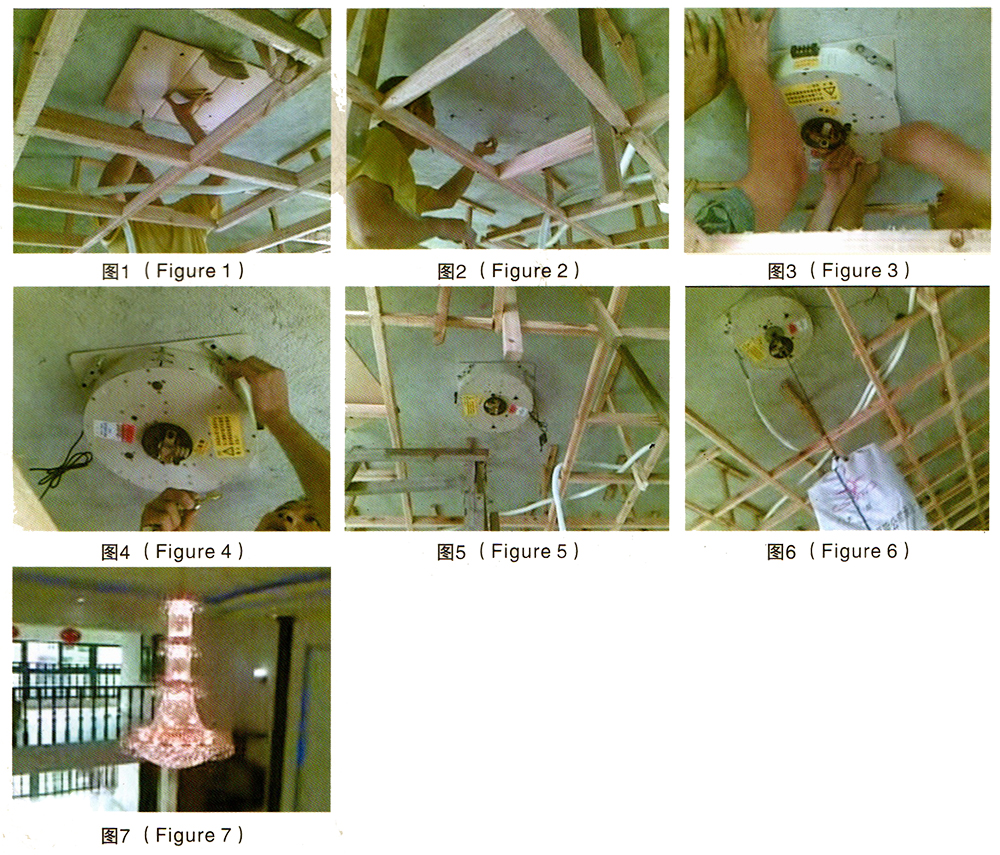

Installation instructions
1、機臺天棚安裝，四個角處定點位。
The setting points of four horns for ceiling installation
2、按定點孔位固定好膨脹螺栓。
Fix the expansion bolts in the setting points.
3、吊燈旋轉升降機對上天棚膨脹螺栓鎖緊Fix the lamps rotary lifts on the ceiling with expansion bolts.
4、將機臺下部的旋轉齒輪上鎖緊吊鉤。
Lock the hook on the rotating gears under the machine.
5、接通吊燈旋轉升降機的外線電源。
Turn on the power of the lamps rotary lifts.
6、必需懸掛8kg以上重物，方可按啟遙控器下降地面。
Pressing the start button on the remote controller is alloweduntil more than 8 kg of weight is suspended.
7、取下懸掛重物換上燈具上升。
Replace the weight with lamps and raise the lamps.

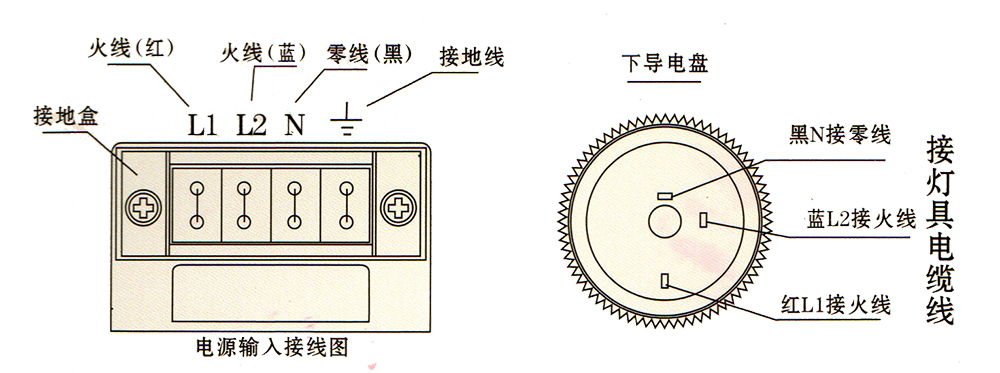

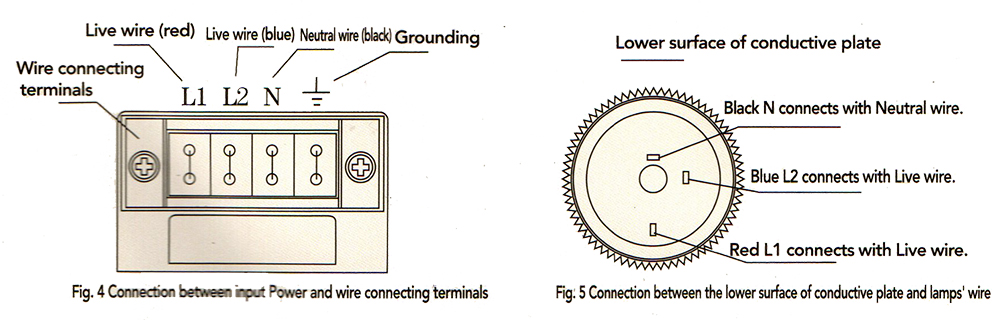

電器接線與注意事項:
1、裝吊燈旋轉升降機的接線盒，按接線圖把輸入端電源（AC220V）火線，零線，接下線逐條對應連接；
2、燈具電源線與吊燈旋轉升降機下導電盤連接，按接線圖連接；當燈具的功率較小時，應把燈具火線接在L1；燈具的功率大時有多股火線，可將其平分為兩組線分別接入L1，L2中；
3、接線時應保證每股裸露電線全部在對應的接線柱里，不會接觸到周?chē)慕饘賹?dǎo)體，避免燈具漏電不發生安全事故。
4、接線過程的壓線螺釘必須重新逐個檢查并接鎖緊，確保接線不會松弛，脫離接線柱，避免觸電斷路發生不安全事故。
